ZrN vs TiN Coatings: Properties Comparison

ZrN and TiN coatings are essential for improving CNC machining tools, but which one is right for your needs? Here's a quick breakdown:

• ZrN Coatings: Best for non-ferrous metals (like aluminum and copper), sticky materials, and applications needing high corrosion resistance or thermal stability. They offer smoother surfaces and reduced material buildup but come at a higher cost.
• TiN Coatings: Ideal for general-purpose machining, especially with steel, brass, and cast iron. They are harder, more affordable, and handle heavy-duty tasks well, though they have moderate corrosion resistance.

Quick Comparison

Key takeaway: Choose ZrN for precision, non-ferrous metals, and high-speed drilling. Opt for TiN for affordability and general machining with ferrous metals. Read on for a detailed comparison and application guide.

Overview of ZrN and TiN Coatings

Understanding ZrN and TiN coatings is key to improving tool performance in CNC machining. These coatings have changed how tools are protected and how their performance is enhanced.

ZrN Coating Basics

Zirconium Nitride (ZrN) coatings are made from zirconium and nitrogen compounds, giving them a lighter gold color compared to the deeper gold of TiN coatings. Their molecular structure provides excellent anti-stick properties, reducing material buildup on tools. This helps cut down cleaning time and boosts machining efficiency.

With a melting point of 2980°C, ZrN coatings are ideal for high-speed drilling. They offer great heat dissipation and create smoother surfaces due to reduced droplet formation during the PVD (Physical Vapor Deposition) process - a method used to apply thin coatings that enhance tool performance.

ZrN coatings are particularly suited for machining non-ferrous metals like aluminum and copper, as well as sticky materials such as wood. Their anti-stick characteristics make them a go-to choice for:

• Aluminum parts
• Copper workpieces
• Wood materials
• Other sticky substances that tend to cling to cutting tools

TiN Coating Basics

Titanium Nitride (TiN) coatings are among the most commonly used solutions in manufacturing. They form a durable protective layer by combining titanium and nitrogen.

With a bulk hardness of around 2000hv, TiN coatings are built for heavy-duty machining. Their wear resistance and oxidation protection make them a standard choice for tasks like:

• Steel machining
• Brass processing
• Cutting cast iron
• General-purpose machining

Here’s a quick comparison of ZrN and TiN coatings, highlighting their key properties and best uses:

Comparing Key Properties

Hardness and Wear Resistance

ZrN coatings have a hardness of 24.8 GPa compared to TiN's 26.2 GPa. While TiN is harder, ZrN's smoother surface gives it an edge in wear resistance and tool durability during high-speed drilling. This smooth finish reduces friction by limiting irregularities that lead to wear. While wear resistance directly impacts tool life, corrosion resistance is equally crucial for maintaining performance in tough environments.

Corrosion Resistance

ZrN coatings outperform TiN in corrosion resistance, particularly in water-based environments. This is due to zirconium’s ability to form a more stable protective barrier against corrosive agents, making it a better choice for applications exposed to harsh conditions.

Friction and Heat Resistance

The friction properties of these coatings change with temperature. At room temperature, TiN has a lower friction coefficient (0.45) compared to ZrN (0.65). But at 150°C, TiN's coefficient drops significantly to 0.2, while ZrN remains steady at 0.45.

When it comes to heat resistance, ZrN stands out with better thermal stability. This helps reduce thermal distortion, ensuring precision and extending tool life in demanding applications. ZrN is especially suited for:

• High-speed drilling over extended periods
• Working with heat-sensitive materials
• Tasks requiring minimal impact from heat distortion

These distinctions make it easier to choose the best coating for specific machining applications, which will be discussed further in the next section.

Applications and Best Uses

Understanding the strengths of ZrN and TiN coatings helps pinpoint where they shine in specific industrial applications.

When to Use ZrN Coatings

ZrN coatings work exceptionally well for machining sticky materials like aluminum and copper due to their anti-stick qualities. They are perfect for scenarios requiring thermal stability and corrosion resistance, particularly with non-ferrous and sticky materials.

Here’s where ZrN coatings excel:

ZrN's biocompatibility and resistance to corrosion also make it an excellent choice for medical tools, which often face exposure to acidic or alkaline conditions.

When to Use TiN Coatings

TiN coatings are a practical, budget-friendly option for general machining, especially with ferrous metals. With a hardness rating of 2000 HV, they’re ideal for heavy-duty cutting tasks.

Key applications for TiN coatings include:

TiN’s ability to minimize friction under high temperatures ensures reliable performance, even in challenging machining conditions.

sbb-itb-b5aecec

How to Choose the Right Coating

Selecting the right coating comes down to aligning its features with your machining needs - whether that's the material you're working with, required performance, or budget constraints.

This breakdown helps you compare the strengths of each option. Let’s dive deeper into how these coatings perform in specific scenarios.

For non-ferrous metals like aluminum or copper, ZrN's smooth surface promotes better heat dissipation. This makes it a top choice for high-speed machining where managing heat is critical.

If you're machining ferrous metals or need a general-purpose solution, TiN coatings are a practical option. They offer excellent performance at a lower cost. Their friction coefficient (0.2 at 150°C, compared to ZrN's 0.45) makes them especially effective for everyday machining tasks. Plus, TiN is widely available, which simplifies sourcing.

Think about your operating conditions too. ZrN's resistance to corrosion makes it well-suited for industries like medical device manufacturing or chemical processing, where harsh environments are common.

For those prioritizing cost-efficiency, TiN provides durability and wear resistance without breaking the bank. It's ideal for extending tool life in standard applications.

On the other hand, if precision is your main concern, ZrN's smoother finish delivers better accuracy, making it the go-to for jobs where surface quality is a priority.

If you're still unsure, resources like the Machine Shop Directory can connect you with experts to guide your decision.

Helpful Resources

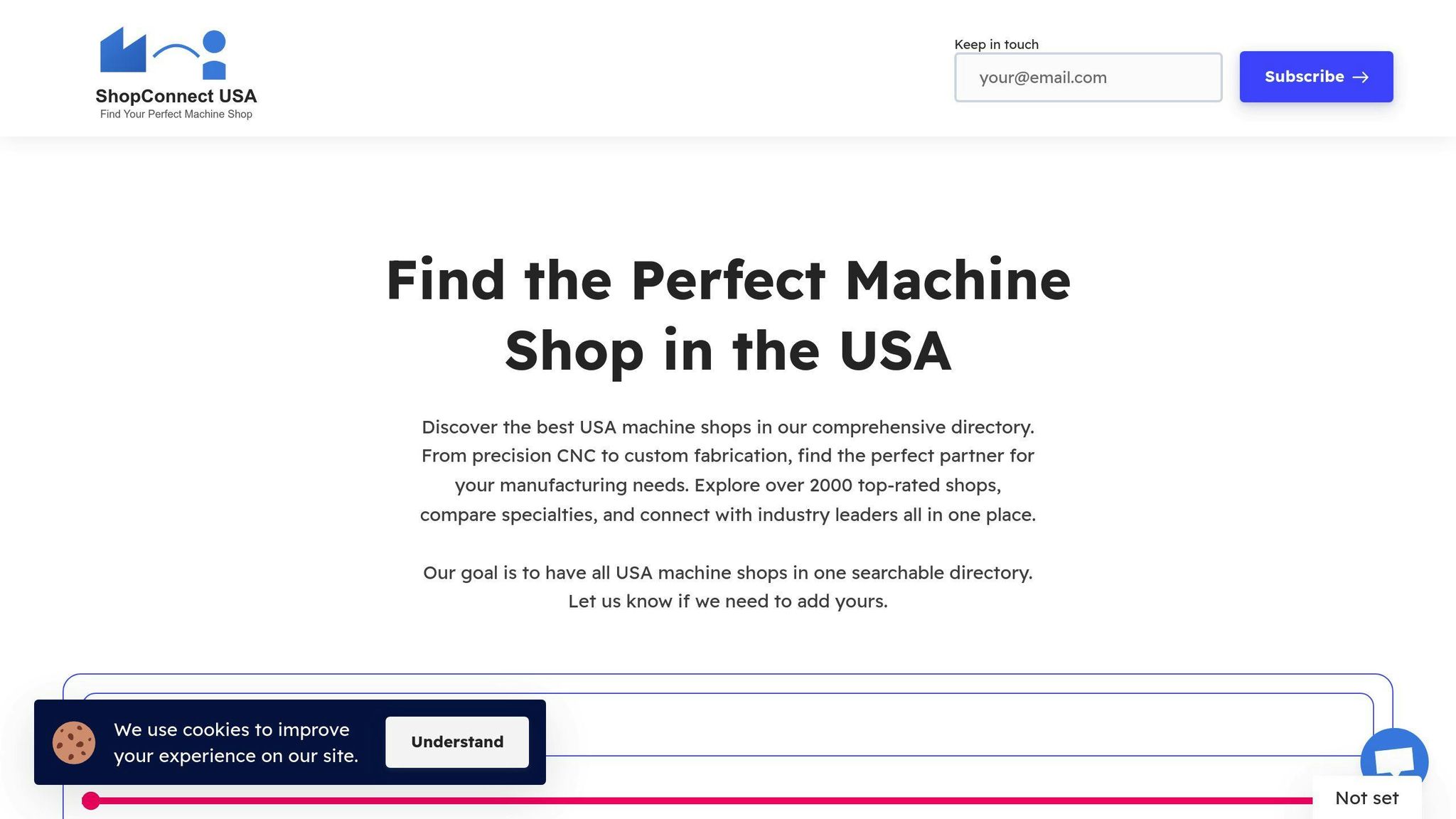

Selecting a machine shop with expertise in ZrN and TiN coatings is key to achieving top-notch CNC machining results. The Machine Shop Directory (machineshop.directory) connects you with over 200 thoroughly vetted facilities that specialize in precision machining and advanced coating applications. Using resources like this can simplify the search for the perfect coating partner.

If you're looking for technical details and specific coating information, the following resources can help:

Using the Machine Shop Directory

Physical Vapor Deposition (PVD) coatings are critical for creating durable, precise finishes on CNC tools. When using the Machine Shop Directory to find coating services, focus on these important factors:

• Equipment and Technology: Look for shops equipped with advanced PVD systems that provide ZrN and TiN coating options. Make sure they have experience with your specific materials and use modern, high-quality equipment.
• Quality Control: Choose facilities with strong quality control systems. They should provide documentation for coating thickness, adhesion testing, and surface finish analysis.

These resources go beyond just connecting you with service providers - they also offer technical insights that can guide your decision-making. When evaluating potential partners, inquire about their processes for coating thickness measurement, surface preparation, and post-coating quality checks. This ensures you find a provider that meets your exact requirements.

Conclusion

Choosing between ZrN and TiN coatings plays a big role in CNC machining performance and tool lifespan. Each coating has unique properties that make it better suited for certain tasks.

ZrN coatings are ideal for high-speed drilling and working with non-ferrous metals. They can handle temperatures up to 2980°C, offering outstanding oxidation and wear resistance. Their strong corrosion resistance and biocompatibility also make them a go-to choice for medical device manufacturing. However, their higher cost means they’re best reserved for specialized applications where their benefits outweigh the expense.

TiN coatings, on the other hand, are a trusted option for general-purpose machining. They provide excellent hardness and reduced friction across a wide range of materials, including metals, plastics, and wood. Thanks to their versatility and affordability, TiN coatings are perfect for everyday machining tasks, especially when cost is a concern.

Advances in coating technology have also introduced hybrid solutions like multicomponent nanostructured (Zr,Ti)N coatings. These combine the strengths of both ZrN and TiN, offering better wear resistance and corrosion protection compared to single-material coatings.

When deciding on a coating, it’s important to match it to the specific demands of your project. Here’s a quick guide:

Picking the right coating can make a big difference. Studies show that using the appropriate coating can extend tool life by up to 50% in certain scenarios, proving how critical this decision is for efficient and cost-effective machining.
