Ultimate Guide to Waterjet Cutting Materials

Waterjet cutting is a precise method that uses high-pressure water (up to 90,000 PSI) to cut materials ranging from soft foam to hardened steel. It’s divided into two types: pure waterjet (for softer materials) and abrasive waterjet (for harder materials like metals and stone). This process avoids heat damage, maintains material integrity, and delivers smooth edges, often eliminating the need for secondary finishing.

Key Takeaways:

• Cold Cutting: No heat-affected zones (HAZ), making it ideal for heat-sensitive materials like composites and hardened steels.
• Precision: Tolerances of ±0.003 inches on materials up to 4 inches thick.
• Material Versatility: Cuts metals (stainless steel, aluminum, titanium), non-metals (glass, wood, plastics), and composites.
• Applications: Widely used in aerospace, automotive, construction, and electronics industries.
• Efficiency: Reduces material waste by 15–25% due to narrow kerf width and tight part nesting.

Challenges include slower cutting speeds for thick or hard materials, potential water absorption in porous materials, and higher costs for intricate designs. However, working with experienced machine shops ensures optimal results.

Whether for industrial manufacturing or custom fabrication, waterjet cutting delivers precision and flexibility across a wide range of materials and applications.

Material Properties for Waterjet Cutting

Getting the best results with waterjet cutting relies on aligning the material's properties - like hardness, thickness, and heat sensitivity - with the capabilities of the cutting process. Let’s break down how these factors influence performance and why they matter.

Material Hardness and Thickness

The hardness of a material plays a big role in how quickly and cleanly it can be cut. Metals are often measured using the Rockwell scale; for example, softer metals like aluminum cut much faster than harder ones, such as tool steel.

Thickness is another critical factor. Materials like rubber and foam can maintain clean edges even at greater thicknesses, while tougher metals like titanium or Inconel require slower cutting speeds and precise adjustments to achieve the desired quality.

Interestingly, the relationship between hardness and cutting speed isn’t always straightforward. Some materials, like specific grades of stainless steel, can harden during the cutting process. This "work-hardening" effect means you’ll need to tweak the feed rate to keep the edges smooth and precise.

Heat Sensitivity and Cut Quality

One of waterjet cutting's biggest advantages is that it’s a cold process, making it ideal for heat-sensitive materials. Unlike methods like plasma or laser cutting, which can create heat-affected zones (HAZ) that weaken or alter material properties, waterjet technology avoids these issues entirely.

This is especially helpful for composite materials. For instance, carbon fiber reinforced plastics and fiberglass composites often degrade or delaminate under high heat. Waterjet cutting preserves their structure and ensures a clean cut without compromising integrity.

For hardened tool steels, which are heat-treated for durability, exposure to high temperatures can ruin their temper. Waterjet cutting avoids this problem, maintaining the material’s metallurgical properties and often eliminating the need for additional processing. Plus, it produces smooth, high-quality edges, reducing or even removing the need for secondary finishing - particularly useful for heat-sensitive plastics like acrylic.

Abrasive vs. Pure Waterjet Methods

Choosing between abrasive and pure waterjet cutting comes down to the material and the specific cutting requirements. Pure waterjet cutting, which uses only pressurized water, works best for softer materials and is especially useful in applications requiring strict sanitary conditions, such as food-grade products.

Abrasive waterjet cutting, on the other hand, adds garnet particles to the water stream, significantly boosting its ability to cut harder materials like metals, ceramics, stone, and certain composites. While this method increases costs due to the added abrasives and system complexity, it’s essential for handling tougher materials.

The cutting speed and edge quality vary between these methods. Pure waterjet cutting is quicker for soft materials and leaves smoother edges, while abrasive waterjet cutting, though slower, delivers excellent finishes on harder materials - provided the cutting settings are fine-tuned for the job.

Metals: Types and Properties

Metals, often processed using waterjet cutting, present a mix of challenges and advantages. They are the most commonly handled materials in this method, and their specific characteristics - such as performance, edge quality, and cost - play a crucial role in selecting the right metal and optimizing the cutting process.

Popular Metals for Waterjet Cutting

Stainless steel stands out for its adaptability. Grades like 304 and 316 are ideal for food, medical, and architectural applications, offering clean, precise cuts. These grades can maintain steady feed rates up to 8 inches in thickness. On the other hand, duplex stainless steels, with their higher strength, require slower cutting speeds.

Aluminum is the fastest metal to cut due to its softness. Alloys such as 6061-T6 and 5052 are widely used in aerospace and automotive industries. For sections thinner than 0.25 inches, pure waterjet cutting works well, while abrasive methods improve edge quality for thicker pieces. Quick processing is essential to prevent oxidation.

Titanium benefits significantly from waterjet cutting, which avoids the wear and tear associated with traditional machining tools. Grade 2 titanium is easier to cut than Grade 5, but both grades retain their corrosion resistance and biocompatibility. The cold cutting process ensures the material's metallurgical properties remain intact, making it a go-to choice for aerospace and medical components.

Mild steel is a popular and cost-effective option. Lower carbon steels like A36 and A572 cut faster and cleaner compared to high-carbon varieties. While waterjet cutting can handle thicknesses beyond 6 inches, practical applications typically stick to this limit for efficiency.

Copper and brass require slower cutting speeds due to their high thermal conductivity and tendency to work-harden. Pure copper cuts smoothly, while brass alloy C360 offers better performance compared to high-zinc brasses. These metals are frequently used in electrical, plumbing, and decorative applications, often requiring minimal post-cut finishing.

Metal Comparison Chart

The cutting speeds in the chart are relative comparisons based on similar thicknesses, but actual speeds depend on factors like the desired edge quality, material thickness, and machine capabilities. Tool steel, for example, requires the slowest speeds among these materials but delivers exceptional edge quality, often eliminating the need for additional finishing like grinding.

When choosing metals for waterjet cutting, it’s essential to think beyond the cutting process itself. Consider how the material will perform in its final application. Waterjet cutting’s cold process preserves the metal’s properties, making it an excellent choice for projects where maintaining metallurgical integrity is critical.

Non-Metal Materials: Properties and Uses

When it comes to non-metal materials, waterjet cutting requires a tailored approach to preserve their distinct characteristics. Unlike metals, many of these materials are best handled with pure waterjet cutting, as the use of abrasives can damage delicate surfaces or compromise structural integrity. Let’s dive into some key non-metal materials and how they perform under waterjet cutting.

Types of Non-Metal Materials

Glass responds exceptionally well to waterjet cutting, delivering smooth, polished edges that often eliminate the need for additional finishing. Annealed glass cuts cleanly up to 2 inches thick, making it ideal for architectural glass, automotive windshields, and decorative panels. On the other hand, tempered glass requires extra care due to its internal stress patterns.

Stone materials, including granite, marble, and slate, showcase waterjet cutting’s flexibility in architectural and decorative projects. Natural stone can be cut up to 4 inches thick, though cutting speed depends on the stone’s hardness and mineral makeup. For instance, marble, being softer, cuts faster than granite, while engineered quartz demands careful handling to avoid chipping.

Advanced ceramics are brittle and require precise control over cutting pressures. Technical ceramics, used in aerospace and electronics, can be cut without causing microcracks. While ceramic tiles and decorative pieces are easier to cut, edge quality can vary depending on the ceramic’s composition and firing temperature.

Wood and engineered wood products are well-suited for pure waterjet cutting, though the moisture content of the material can affect results. Hardwoods like oak and maple produce cleaner cuts compared to softwoods, which may show fiber tearing. For plywood and MDF, slower speeds help prevent delamination between layers. Waterjet cutting also avoids burn marks, which are common with other cutting methods.

Rubber and foam materials benefit from waterjet’s ability to cut without compressing the material. Dense rubber gaskets and open-cell foams maintain their precision, while closed-cell foams, often used in packaging and insulation, display excellent edge quality. Soft foams, however, may need backing support during the process.

Composite materials are another area where waterjet cutting excels. Carbon fiber, fiberglass, and aramid composites can be cut without causing delamination or fiber fraying, preserving the resin matrix and structural integrity. This makes waterjet cutting invaluable for aerospace components, automotive parts, and sporting goods.

Plastic materials exhibit varied results. Acrylic and polycarbonate cut beautifully, resulting in crystal-clear edges. HDPE and UHMW polyethylene also cut well, though they may show slight surface texture. Thermoset plastics generally perform better than thermoplastics, which can develop stress whitening or crazing. For thick plastic sections over 3 inches, multiple passes may be needed for optimal edge quality.

Non-Metal Material Comparison Chart

The success of waterjet cutting with non-metal materials hinges on understanding their specific properties. Brittle materials, like glass and ceramics, demand steady and consistent cutting speeds to avoid stress concentrations that can lead to cracking. Layered materials, such as plywood or composite laminates, require slower speeds and precise water pressure to prevent delamination.

Moisture-sensitive materials pose unique challenges. Wood products should be properly dried and sealed when possible, and some foams may absorb water during cutting, altering their final properties. Careful planning of the cutting sequence is essential for materials that may shift or distort as internal stresses are released.

One major advantage of waterjet cutting is the absence of heat-affected zones, making it ideal for temperature-sensitive plastics and composite materials. This is especially critical in aerospace and medical applications, where maintaining material integrity and meeting strict certification standards are non-negotiable.

sbb-itb-b5aecec

Waterjet Cutting Limits and Challenges

While waterjet cutting is a versatile method for working with a variety of materials, it does come with its own set of challenges. Understanding these limitations is essential for machine shops to achieve the best possible outcomes. These challenges often stem from material properties, technical constraints, and operational considerations.

Material and Technical Limits

Certain material characteristics can impact the performance of waterjet cutting. For instance, porous or open-structured materials may absorb water during the process, which can weaken them or alter their dimensions. Composite materials, especially those with layers of differing properties, can suffer from delamination or uneven edges. Some plastics might experience surface imperfections or slight dimensional shifts as internal stresses are released. To navigate these issues, it’s crucial to fine-tune factors like water pressure, abrasive flow, and material thickness to match the specific requirements of the job.

Cost and Time Factors

Cutting thicker materials or working on intricate designs can slow down the process significantly. This not only increases the amount of abrasive material required but also often necessitates additional finishing steps, driving up production costs. These time and cost considerations are essential when planning projects that rely on waterjet cutting.

Safety and Compliance Requirements

Operating waterjet systems involves managing extremely high pressures, so safety must always be a top priority. Following strict safety protocols is non-negotiable. This includes regular maintenance of the equipment, comprehensive operator training, and proper lockout/tagout procedures. Additionally, effective water management, dust and noise control, and maintaining detailed documentation are critical to meeting regulatory and environmental standards. Neglecting these practices can lead to compliance issues and potential hazards in the workplace.

Finding CNC and Custom Fabrication Experts

Choosing the right machine shop is a game-changer for waterjet cutting projects. The expertise of skilled machinists and the quality of their equipment directly influence the final product. A knowledgeable partner can fine-tune waterjet settings to tackle the material challenges discussed earlier, ensuring your project is executed with precision.

Why Work with Experienced Machine Shops

Seasoned machine shops bring a wealth of expertise to the table. Their machinists understand the intricacies of waterjet cutting and know how to tweak settings like water pressure and cutting speed to suit different materials. This level of skill ensures your project meets its specific requirements without compromising on quality.

These shops also invest in top-tier waterjet systems and stick to strict maintenance routines. The result? Consistent, high-quality cuts and a boost in overall efficiency. Many experienced shops also carry certifications like ISO 9001, signaling their dedication to quality management and adherence to industry standards - an essential factor for high-stakes projects.

Another advantage of working with experienced fabricators is their ability to solve problems effectively. Whether it’s dealing with material delamination or surface imperfections, these professionals can anticipate issues and adjust their approach, saving both time and materials in the process.

Using the Machine Shop Directory

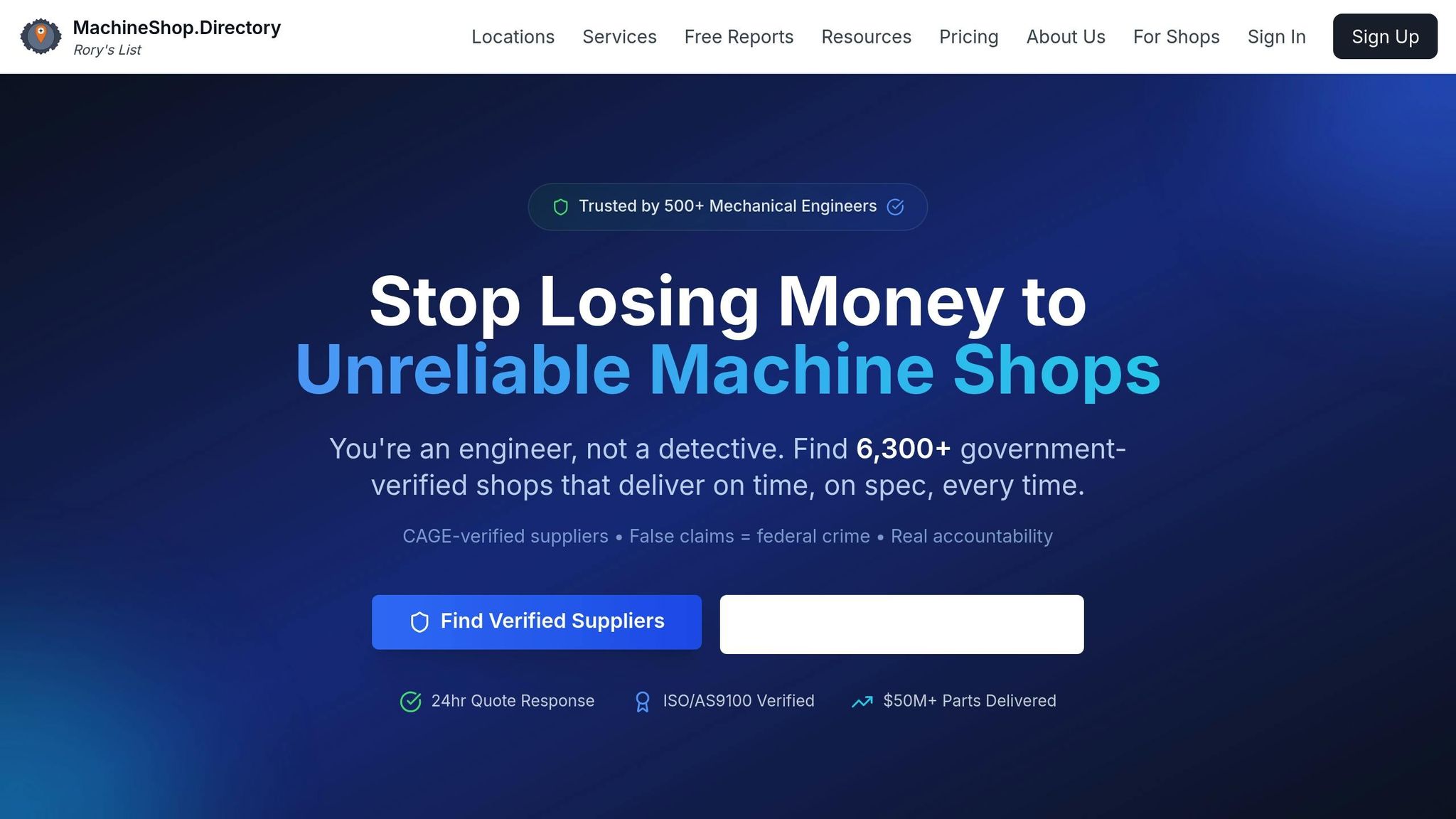

Finding the right partner doesn’t have to be overwhelming. Online resources like the Machine Shop Directory make the process straightforward. This directory lists over 200 highly-rated machine shops across the U.S., helping you locate qualified experts near you.

Each shop profile provides detailed information about their services, making it easier to identify specialists in waterjet cutting, CNC machining, milling, turning, or welding. Real-world customer reviews and ratings offer valuable insights into a shop’s reputation, work quality, and responsiveness.

Additionally, the directory allows you to compare multiple shops side by side. You can evaluate pricing, service offerings, and customer feedback all in one place. This comparison feature ensures you find the best fit for your waterjet cutting project, balancing quality, reliability, and cost-effectiveness.

Conclusion

Waterjet cutting stands out as a precise and versatile method, capable of handling everything from tough materials like hardened steel and titanium alloys to more delicate options such as ceramics and composites.

The key to success lies in pairing the right cutting technique with the material at hand. Abrasive waterjet systems are a great fit for metals like aluminum and stainless steel, while pure waterjet cutting is ideal for softer materials such as rubber and foam. For heat-sensitive materials, waterjet cutting offers a major advantage with its cold cutting process, eliminating the risk of thermal distortion that comes with other methods.

Though costs and timelines can vary, the precision of waterjet cutting often makes it worth the investment, especially for complex or high-value projects where minimizing waste is a priority.

To get the best results, it’s essential to work with experienced machine shops that can fine-tune parameters to tackle specific challenges, such as preventing composite delamination or ensuring clean edges on thicker materials. Tools like the Machine Shop Directory can help you find skilled professionals who bring expertise to the table. This guidance is crucial for achieving the efficiency and accuracy that make waterjet cutting so effective.

Understanding the unique properties of your material is the foundation of any successful project. When combined with expert handling, waterjet cutting consistently delivers precise, high-quality results across a wide range of applications.

FAQs

What makes waterjet cutting better than traditional methods like laser or plasma cutting?

Waterjet cutting offers a unique edge over traditional methods like laser or plasma cutting because it doesn’t rely on heat to get the job done. Instead, it uses a high-pressure stream of water (sometimes mixed with abrasive particles) to slice through almost any material. This means there are no heat-affected zones, which helps preserve the material’s structural integrity and prevents issues like warping.

What’s more, waterjet cutting is known for its precision and ability to produce clean, smooth edges. This is especially valuable when working with thicker materials or creating intricate designs. It’s also a go-to solution for cutting materials that are sensitive to heat, which might otherwise distort or degrade when exposed to high temperatures in other methods.

Because of these benefits, waterjet cutting is widely used in industries ranging from precision engineering to custom fabrication, proving itself as a dependable and versatile tool for a variety of projects.

What’s the difference between pure waterjet and abrasive waterjet cutting, and how do they affect project quality and cost?

When it comes to waterjet cutting, the method you choose depends largely on the material and the job's requirements.

Pure waterjet cutting works best for softer, thinner materials like rubber, foam, or plastics. It provides clean, precise cuts without the need for abrasives, making it a cost-effective option. However, it’s not suitable for harder materials such as metals or stone.

On the other hand, abrasive waterjet cutting is built for tougher materials like steel, titanium, or ceramics. While it’s capable of handling demanding tasks, it generally produces a rougher finish and comes with higher costs. This is due to the use of abrasive materials and the added wear on the equipment. Abrasive waterjets are the go-to choice for heavy-duty projects where strength and durability are key.

The decision ultimately hinges on the type of material, the level of precision required, and the budget.

What should I look for when choosing a machine shop for waterjet cutting services?

When choosing a machine shop for waterjet cutting, look for one equipped with advanced, well-maintained machinery that can handle a wide range of projects. It's important that they have experience with various materials and can meet your exact needs when it comes to precision, dimensions, and accuracy.

Also, take a close look at their reputation. Check customer reviews, their history of delivering projects on schedule, and their ability to maintain clear communication throughout the process. A dependable shop should be open to discussing how their skills and capabilities align with your project goals.
