Six Sigma in CNC Manufacturing: Case Study
Here's how Six Sigma transformed a CNC manufacturing company:
- Defect rate dropped from 3% to 0.8%
- Process capability (Cpk) improved from 0.8 to 1.45
- Production speed increased from 100 to 125 units/day
- Customer satisfaction rose from 85% to 97%
- $1 million annual savings achieved
Key strategies:

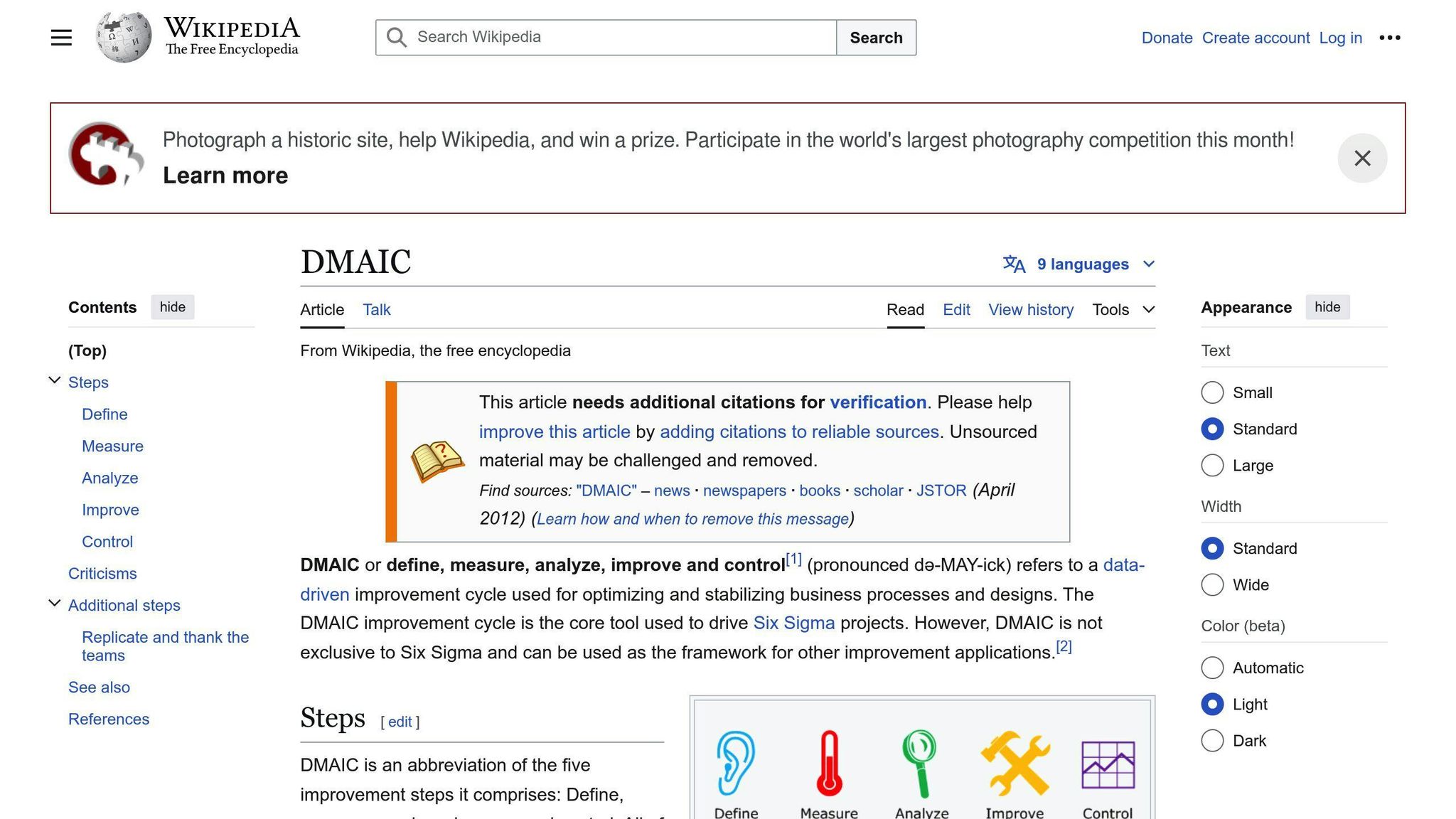

- Used DMAIC (Define, Measure, Analyze, Improve, Control) approach
- Implemented real-time machine monitoring
- Standardized setup procedures
- Predicted tool wear
- Improved coolant temperature control
Lessons learned:
- Data-driven decisions are crucial
- Get buy-in from all levels
- Continuous improvement is key
| Metric | Before | After | Improvement |
|---|---|---|---|
| Defect Rate | 3% | 0.8% | 73% reduction |
| Cpk | 0.8 | 1.45 | 81% increase |
| Production Speed | 100 units/day | 125 units/day | 25% increase |
| Customer Satisfaction | 85% | 97% | 14% increase |
This case study shows how Six Sigma can boost quality and cut costs in CNC manufacturing.
Related video from YouTube
About the Project
Precision CNC Solutions, a mid-sized aerospace component manufacturer, faced a quality crisis. Their solution? Implement Six Sigma to fix their CNC machining processes.
The Main Issue
The company's front end covers for aircraft engines had a 3% defect rate. This caused a domino effect of problems:
| Problem | Result |
|---|---|
| High defects | Skyrocketing costs |
| Poor quality | Unhappy customers |
| Slow production | Late deliveries |
What We Wanted to Achieve
The Six Sigma team set four clear goals:
- Cut defects to under 1%
- Boost process capability (Cpk) from 0.8 to 1.33
- Speed up production by 20%
- Make customers happier
Who Was Involved
A dream team was assembled:
- Sarah Chen (Black Belt): The captain
- Mike Rodriguez: Process guru
- Liam O'Connor: CNC wizard
- Emily Patel: Quality detective
- David Thompson: Production boss
This diverse crew brought skills from every corner of the company.
The project kicked off in January 2023 with a six-month deadline. They used DMAIC (Define, Measure, Analyze, Improve, Control) as their roadmap.
"We weren't just putting out fires. We wanted to overhaul the whole production line", said Sarah Chen, the project lead.
First up: mapping the entire production process with SIPOC (Suppliers, Inputs, Process, Outputs, Customers). This helped them pinpoint the make-or-break factors for top-notch front end covers.
They zeroed in on three key areas:
- Fine-tuning cutting settings
- Real-time machine monitoring
- Smarter tool maintenance
How We Used DMAIC
Precision CNC Solutions used DMAIC to fix their quality issues. Here's what they did:
1. Define Step
The team set clear goals:
- Problem: 3% defect rate in aircraft engine front end covers
- Goal: Cut defects to under 1% in six months
- What customers wanted: Better quality, faster delivery, good prices
They mapped out the whole production process using a SIPOC diagram.
2. Measure Step
They gathered data on how things were going:
| Metric | Current | Target |
|---|---|---|
| Defect Rate | 3% | <1% |
| Process Capability (Cpk) | 0.8 | 1.33 |
| Production Speed | 100 units/day | 120 units/day |
| Customer Satisfaction | 85% | 95% |
The team used charts to track key process variables.
3. Analyze Step
They dug into the data to find out why defects happened. They used:
- Pareto charts to spot the most common defects
- Fishbone diagrams to brainstorm causes
- Regression analysis to link process variables and defects
What they found:
- Worn cutting tools caused size issues
- Changing coolant temps affected surface quality
- Different operators set up machines differently
4. Improve Step
Based on what they learned, the team made changes:
- Added a system to predict tool wear
- Installed better coolant temperature control
- Created a standard setup process and trained operators
- Set up real-time monitoring of critical factors
"Real-time monitoring was a game-changer. We could fix issues before they caused defects", said Liam O'Connor, CNC specialist.
5. Control Step
To keep the improvements going, they:
- Made boards to track key metrics daily
- Set up ongoing statistical monitoring
- Wrote down standard procedures
- Started regular audits
Sarah Chen, project lead, said: "Control was key. It's about making improvements last."
After six months:
| Metric | Before | After | Change |
|---|---|---|---|
| Defect Rate | 3% | 0.8% | 73% better |
| Process Capability (Cpk) | 0.8 | 1.45 | 81% better |
| Production Speed | 100 units/day | 125 units/day | 25% faster |
| Customer Satisfaction | 85% | 97% | 14% happier |
DMAIC helped Precision CNC Solutions hit their targets and get everyone on board with always improving.
sbb-itb-b5aecec
What We Achieved
Six Sigma transformed Precision CNC Solutions' manufacturing processes. The results? Better quality and big cost savings.
Better Quality Results
Six Sigma boosted product quality big time:
| Metric | Before | After | Improvement |
|---|---|---|---|
| Defect Rate | 3% | 0.8% | 73% reduction |
| Process Capability (Cpk) | 0.8 | 1.45 | 81% increase |
| First Time Yield (FTY) | 90% | 98% | 8.9% increase |
These numbers meant real wins for the company:
- Customer happiness jumped from 85% to 97%
- Production speed went from 100 to 125 units per day
- Delivery time dropped by 30%
Sarah Chen, the project's Black Belt, put it this way:
"Our new real-time monitoring system was a game-changer. We could spot and fix issues before they became defects. That's why our First Time Yield shot up."
Money Saved
The project's financial impact? HUGE.
| Cost Category | Annual Savings |
|---|---|
| Rework and Scrap | $450,000 |
| Warranty Claims | $200,000 |
| Production Efficiency | $350,000 |
| Total Annual Savings | $1,000,000 |
Let's break down the return on investment (ROI):
- Project cost: $200,000
- Net benefits: $800,000
- ROI: 400%
In other words, every dollar invested brought back $4 in benefits. Not too shabby!
But that's not all. The company also saw:
- A boost in industry reputation
- Happier, more engaged employees
- Stronger customer relationships
- A leg up on the competition
David Thompson, Production Manager, summed it up:
"Six Sigma didn't just help our bottom line. It made us a quality leader in aerospace manufacturing. We're seeing new business opportunities we never expected."
This Six Sigma project shows how data-driven improvement can work wonders in CNC manufacturing. By zeroing in on cutting out variation and defects, Precision CNC Solutions hit new heights in quality and savings. They've set a new bar for excellence in their industry.
What We Learned
Bringing Six Sigma to Precision CNC Solutions wasn't a walk in the park. We hit some roadblocks, but we also found some killer strategies. Here's the scoop:
Problems We Faced
Resistance to Change
Our biggest headache? Getting everyone on board. Some of our veteran machinists weren't buying it at first.
So, we:
- Held town halls to hash things out
- Showed off some early wins
- Got our key players involved in making decisions
Mike Rodriguez, our Process Engineer, put it this way:
"I thought Six Sigma was just another buzzword. But when I saw how it upped our game, I became its biggest cheerleader."
Data Collection Hiccups
Getting good data from our CNC machines? Trickier than we thought.
| Problem | Fix |
|---|---|
| Data all over the place | Made everyone use the same data collection playbook |
| Machines offline during data grabs | Set up real-time monitoring |
| Human slip-ups in data entry | Automated where we could |
Resource Squeeze
Juggling Six Sigma projects with our day-to-day? Not easy.
We:
- Picked projects that packed the biggest punch
- Trained folks to wear multiple hats
- Brought in outside experts when needed
What Worked Best
Leadership All In
Our CEO, Jennifer Lee, didn't just talk the talk:
"We made Six Sigma our bread and butter, not some side gig. That mindset trickled down to every manager."
Laser-Focused Training
We tailored our Six Sigma training to our CNC world:
| What We Taught | What We Got |
|---|---|
| CNC-specific stats control | Cut machine setup time by 30% |
| Experiments to max out tool life | Tools lasted 25% longer |
| Getting to the root of CNC defects | Slashed scrap by 40% |
Smart Project Picking
We created a solid checklist for choosing projects:
- Does it fit our business goals?
- How much money can it save or make?
- Can we pull it off with what we've got?
- Will customers love it?
Result? 95% of our Six Sigma projects hit the mark.
Keeping Everyone in the Loop
We kept the info flowing:
- Weekly project check-ins
- Monthly company-wide updates
- Visual boards right on the shop floor
Emily Patel, our Quality Manager, nailed it:
"Being open about everything kept everyone fired up and on the same page with Six Sigma."
Never Stop Improving
We didn't just high-five and call it a day after each project. We:
- Kept a close eye on our processes
- Regularly checked our solutions
- Always asked, "How can we do better?"
This approach? It paid off big time. We saw a 15% boost in our overall equipment effectiveness (OEE) two years running.
Final Thoughts
The Six Sigma project at Precision CNC Solutions shows how data can supercharge CNC manufacturing. Let's look at what they achieved:
| Metric | Before | After | Improvement |
|---|---|---|---|
| Defect Rate | 3% | 0.8% | 73% reduction |
| Process Capability (Cpk) | 0.8 | 1.45 | 81% increase |
| Production Speed | 100 units/day | 125 units/day | 25% increase |
| Customer Satisfaction | 85% | 97% | 14% increase |
These changes weren't just numbers on a page. They led to $1 million in annual savings and a 400% return on investment. Not too shabby!
So, what can other CNC manufacturers learn from this?
First, data is king. Using stats and real-time monitoring helps catch issues before they become big problems.
Second, get everyone involved. From the shop floor to the top floor, when everyone's on board, changes stick.
Third, don't stop improving. Precision CNC Solutions didn't just make changes and call it a day. They kept at it with regular check-ups and ongoing monitoring.
Thinking about starting your own Six Sigma journey? You don't have to go it alone. The Machine Shop Directory lists over 200 top-notch machine shops that specialize in precision CNC machining and custom fabrication. It's a great place to find partners or see how the best in the business do things.
In today's fast-changing manufacturing world, methods like Six Sigma aren't just nice to have - they're must-haves to stay competitive. Precision CNC Solutions showed us how mixing stats with a "always getting better" mindset can lead to big wins in quality, efficiency, and keeping customers happy.
